Description
Make any condenser microphone wireless.
Ideal for those last minute stage changes for an extra microphone!
High-fidelity plug-and-play wireless system for condenser microphones
Provides 12V or 48V phantom power to any connected condenser microphone
24-bit / 48 kHz digital audio with low distortion and wide frequency response
Stable 2.4 GHz wireless connection with a range of up to 90 feet

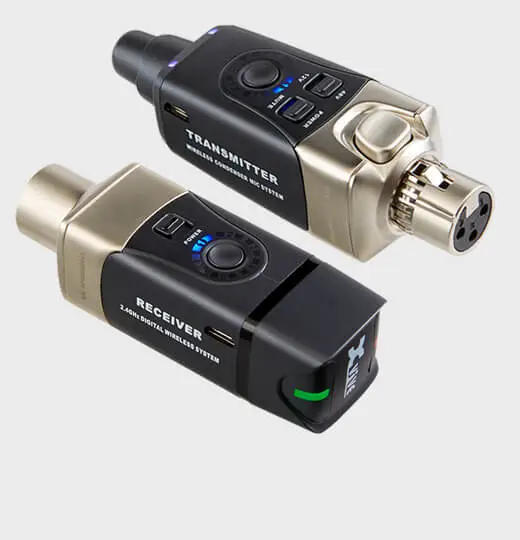

The system is comprised of a transmitter unit, which connects to your microphone; and a receiver, which connects to a mixer, sound interface, preamp, XLR cable or snake
The internal battery in both the transmitter and the receiver lasts for 5 hours. Both units can be easily charged at the same time using the included dual-USB cable and any standard 5V USB charger—and charging takes between 1.5 and 2.5 hours depending on the current of the charger being used
Specifications
U3 U3C
WIRELESS TYPE
2.4 GHz ISM worldwide open band 2.4 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE
24-bit / 48 kHz 24-bit / 48 kHz
SWITCHABLE CHANNELS
6 6
SIMULTANEOUS CHANNELS
6 6
MODE
Input: Mic / Line Phantom Power: 12V / 48V
FREQUENCY RESPONSE
20 Hz – 20 kHz (-3dB) 20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE
110 dB (-3 dB) 103 dB (-3 dB)
MICROPHONE COMPATIBILITY
Dynamic and battery-powered condenser microphones Condenser microphones
SIGNAL-TO-NOISE RATIO
110 dB 110 dB
TOTAL HARMONIC DISTORTION
0.2% 0.2%
LATENCY
5 ms 5 ms
OPERATING RANGE
27.5 m / 90 ft (line-of-sight) 27.5 m / 90 ft (line-of-sight)
Battery
TYPE
Rechargeable Lithium-ion (internal) Rechargeable Lithium-ion (internal)
BATTERY LIFE
5 hrs 3-7 hrs
CHARGING TIME
2.5 hrs (full charge) 2.5 hrs (full charge)
CHARGING VOLTAGE
5V (USB) 5V (USB)
USABLE WHILE CHARGING
Yes Yes
Transmitter
MODEL
U3T U3CT
POWER
N/A 12V / 48V (onboard phantom)
MODE
Input: Mic / Line Phantom Power: 12V / 48V
CONNECTOR
XLR (female) XLR (female)
DIMENSIONS
31 x 29 x 98 mm / 3.9″ x 1.2″ x 1.1″ 31 x 29 x 98 mm / 3.9″ x 1.2″ x 1.1″
WEIGHT
93 g / 3.3 oz 107.73 g / 3.8 oz
MUTE
Yes Yes
Receiver
MODEL
U3R U3RT
CONNECTOR
XLR (male) XLR (male)
DIMENSIONS
98 x 31 x 29 mm / 3.9″ x 1.2″ x 1.1″ 98 x 31 x 29 mm / 3.9″ x 1.2″ x 1.1″
WEIGHT
92 g / 3.2 oz 92 g / 3.2 oz
